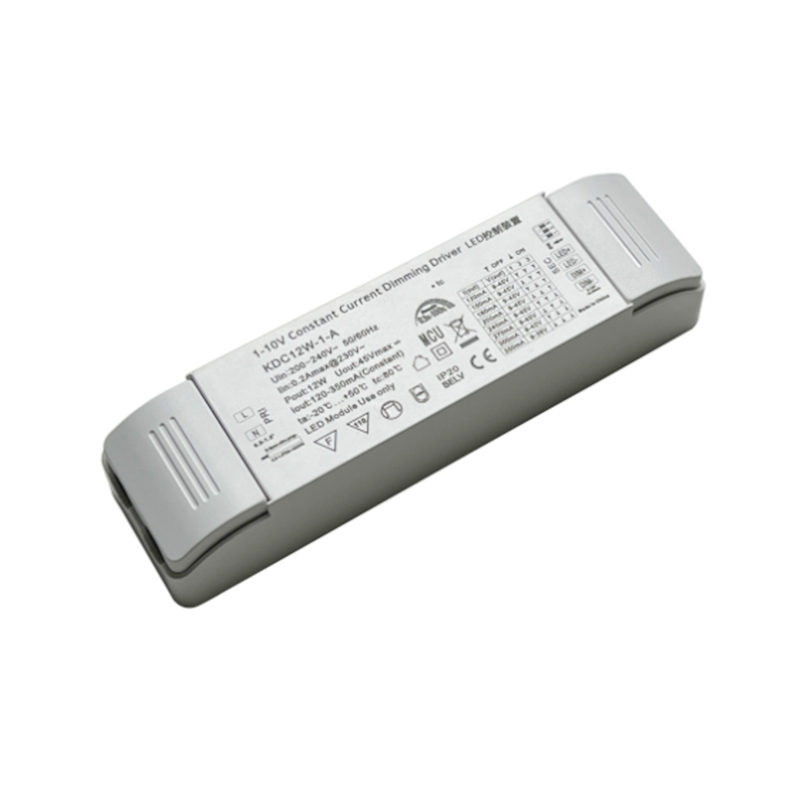

0/1-10V Constant Current Dimming Driver KDC12W-1-A

KDC12W-1-A

Consult

Features Technical Indicators Overall Dimension

1.Input Voltage:200-240VAC.
2.Output Current:120/150/180/200/240/270/300/350mA*1CH.
3.Output Voltage:9-45V.
4.Output Power:12W.
5.Single channel constant current output, multiple current.
6.Support 0-10V, 1-10V PWM signal and 100K resistance.
7.Support dimmers and dimming systems.
8.Dimming effect smooth, no flicker.
9.High efficiency: up to 89%.
10.Overload protection, Short circuit protection.
11.Full load burn-in test.
