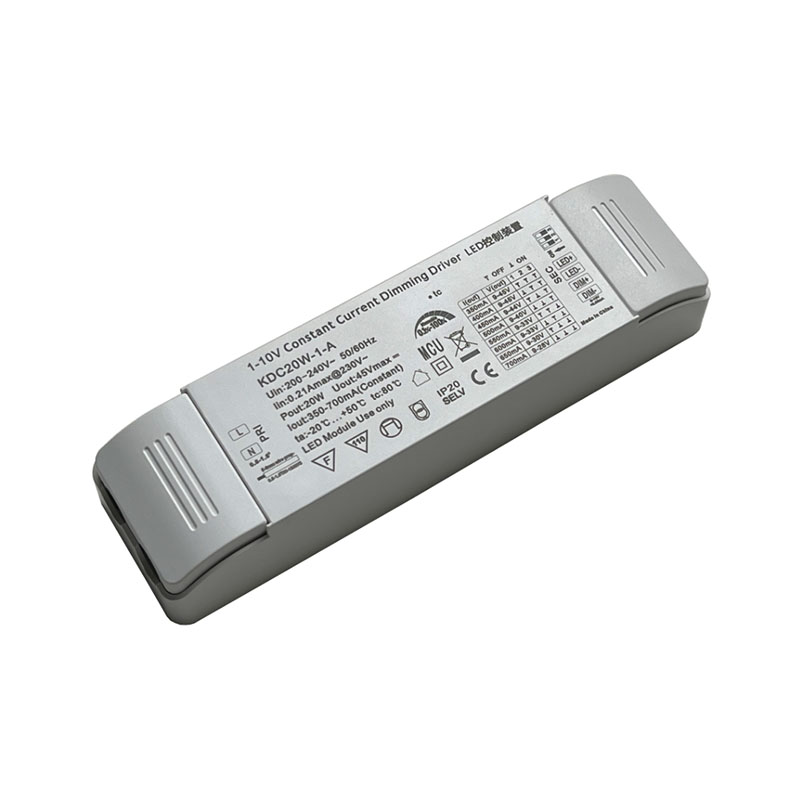

0/1-10v Constant Current Dimming Driver KDC20W-1-A

KDC20W-1-A

Consult

Features Technical Indicators Overall Dimension

1.Input Voltage:200-240VAC.
2.Output Current:350/400/450/500/550/600/650/700mA*1CH.
3.Output Voltage:9-45V.
4.Output Power:20W.
5.Single channel constant current output, multiple current.
6.Support 0-10V, 1-10V PWM signal and 100K resistance.
7.Support dimmers and dimming systems.
8.Dimming effect smooth, no flicker.
9.High efficiency: up to 89%.
10.Overload protection; Short circuit protection.
11.Full load burn-in test.
